45mm YYGL45S Star Head Motor with 72# Interface
45mm YYGL45S tubular motor with 72# star head interface, designed for OEM shutter, blind, awning and projection screen systems requiring secure bracket matching, stable torque output, and professional accessory compatibility.
The Star Head Motor configuration is built for OEM systems where the motor head, bracket, tube, crown adaptor and drive wheel must fit as one package. Final torque, voltage, bracket, crown, drive wheel, cable and certification coverage should be confirmed before order.
Product summary
Product Overview
The Star Head Motor is a 45mm YYGL45S-based tubular motor configuration for projects that require a 72# star head motor head. It is used in roller shutters, roller blinds, awnings, projection screens and OEM shading systems where bracket and tube accessory matching are important.
Key Product Details for Buyers
- 45mm motor diameter for medium-duty shutter, blind and awning systems.
- Torque options: 10Nm, 15Nm, 20Nm, 30Nm, 40Nm and 50Nm.
- Speed options: 12 rpm, 15 rpm or 17 rpm depending on version.
- Voltage options: 230V AC standard; 110V AC or 12V options should be confirmed by project.
- IP44 protection, S2 intermittent duty and quiet operation below 45 dB under suitable installation conditions.
- CE / TUV / SAA / RoHS coverage should be confirmed by exact model, voltage and destination market.
Procurement note
For a correct recommendation, send the tube drawing, bracket drawing, application, curtain weight, required control method and destination market. Walter Motor can then confirm torque, accessory kit, wiring diagram and available documents before sample or batch production.
Quick decision
Is This the Right Motor for Your Project?
Best for
- Roller shutter projects requiring 72# star head interface.
- 45mm motor systems using matched bracket and tube accessories.
- Medium-duty roller shutters.
- Awnings and projection screens after torque confirmation.
- OEM buyers needing a special motor head configuration.
- Distributors who need 10-50Nm coverage under one 45mm product family.
Not recommended for
- Narrow systems needing short-body motors.
- Battery indoor blind projects needing compact rechargeable motors.
- Projects requiring built-in receiver inside the motor head.
- Emergency manual crank projects without choosing manual override models.
- Safety-critical fire shutter projects without project-specific certification.
- High-frequency continuous operation without confirming duty cycle.
Technical data
YYGL45S Star Head Motor Specifications
| Specification | Details |
|---|---|
| Model | YYGL45S Star Head Motor / Star Head Motor 72# |
| Motor diameter | 45mm |
| Head type | 72# star head |
| Torque | 10Nm / 15Nm / 20Nm / 30Nm / 40Nm / 50Nm |
| Speed | 12 rpm / 15 rpm / 17 rpm depending on torque version |
| Voltage | 230V AC standard; 110V AC or 12V options to confirm |
| Limit system | Mechanical limit as standard unless project version is confirmed |
| Control method | Wall switch, external receiver, compatible smart controller after wiring confirmation |
| Protection | IP44 |
| Noise | <45 dB under suitable installation conditions |
| Temperature | -20°C to +50°C |
| Duty cycle | S2 intermittent operation |
| Certification | CE / TUV / SAA / RoHS coverage to confirm by exact model, voltage and destination market |
| OEM options | Cable length, plug, label, packaging, bracket, crown, drive wheel, accessory kit |
72# interface
What Is the 72# Star Head Interface?
The 72# star head is the motor head interface that connects the tubular motor body to the bracket and tube system. It is selected when the installation design uses a matching star head bracket and accessory set.
Why shutter and awning systems use it
A star head interface helps the motor sit securely in the bracket system and makes the mechanical connection easier to standardize for OEM assemblies. Bracket matching matters because a small mismatch can cause noise, vibration, poor alignment or difficult installation.
What to confirm together
- 72# motor head and project bracket.
- Crown adaptor and drive wheel for the tube profile.
- Tube drawing before mass production.
- Cable exit direction and motor insertion depth.
- Bracket, crown, drive wheel and end cap as one accessory system.
Model positioning
45mm Tubular Motor Model Comparison
| Model | Positioning | When to choose |
|---|---|---|
| YYGL45S | Standard 45mm mechanical limit motor | Choose for standard switch control or external receiver projects using the normal 45mm head interface. |
| Star Head Motor | 45mm motor with 72# star head interface | Choose when the bracket drawing or installation system requires the 72# star head configuration. |
| YYGL45R | Mechanical limit motor with built-in receiver | Choose when RF receiver control should be integrated into the motor platform. |
| YYGL45E | Electronic limit / receiver version | Choose when electronic limit setting and receiver control are required. |
| YYGL45B | Parallel control / electronic limit platform | Choose only after confirming the project control and wiring method. |
| YYGL45M | Manual override version | Choose when emergency manual crank operation is required. |
| YYGL45SD | Short body version | Choose when shutter box width or insertion length is limited. |
Torque selection
How to Choose the Right Torque
Torque should not be chosen only by curtain weight. A stable selection depends on the full mechanical system and the way the product will be used.
Factors to confirm
- Curtain or shutter weight.
- Tube diameter and lifting radius.
- Side guide friction.
- Awning arm load and fabric tension.
- Travel height and operating frequency.
- Voltage, controller type and wiring method.
- Safety factor and installation environment.
Walter recommendation process
Send project size and tube drawing for torque recommendation. Walter Motor can review the load, tube profile, bracket and control method before confirming 10Nm, 15Nm, 20Nm, 30Nm, 40Nm or 50Nm.
| Application | Preliminary torque range | Confirmation note |
|---|---|---|
| Light roller blinds | 10-15Nm | Confirm tube and fabric load |
| Standard roller shutters | 20-30Nm | Confirm shutter weight and guide friction |
| Larger shutters / awnings | 40-50Nm | Confirm load, tube, wind exposure and duty cycle |
Compatibility
Tube, Crown, Drive Wheel and Bracket Compatibility
Walter Motor should confirm compatibility from tube drawing, bracket drawing or sample. The motor head, bracket, crown adaptor and drive wheel should be checked together before mass production.
| Item | What Walter should confirm |
|---|---|
| 60mm octagonal tube | Confirm inner profile, crown adaptor, drive wheel and insertion depth before sample approval. |
| 70mm octagonal tube | Confirm tube profile and bracket position; torque should be checked against load and guide friction. |
| Round tube | Confirm inner diameter, wall thickness and drive wheel contact surface. |
| Special tube profile | Send drawing or sample so Walter Motor can confirm crown adaptor and drive wheel fit. |
| Bracket matching | Confirm 72# motor head, HTZ100 / HTZ89 or project-specific bracket and end bracket layout together. |
| Control accessories | Wall switch, receiver and transmitter compatibility should be checked by voltage and wiring diagram. |
Applications
Common Applications and Order Checks
| Application | What to confirm before order |
|---|---|
| Roller shutters | Confirm shutter size, weight, tube diameter, side guide friction, bracket and destination market certification. |
| Roller blinds | Confirm tube profile, fabric weight, tube length, required noise level and control method. |
| Awnings | Confirm arm system, fabric tension, wind exposure, tube, bracket and duty cycle. |
| Projection screens | Confirm screen weight, quiet operation target, upper/lower limit setting and installation space. |
| Light commercial rolling doors | Confirm safety requirements, torque margin, duty cycle and project-specific compliance. |
| Smart shading systems | Confirm receiver, wall switch, gateway or smart controller wiring before selecting motor version. |
| OEM sunshade assemblies | Confirm private label, accessory kit, packaging, drawing, sample approval and batch production schedule. |
Wiring and installation
Wiring and Installation Notes
Important warnings
- Confirm wiring diagram by exact voltage and controller.
- Confirm mechanical limit or electronic limit before order.
- Do not connect multiple motors in parallel unless model and controller support it.
- Confirm tube cutting length, bracket position and motor insertion depth before production.
Before handover
- Test upper and lower limits after installation.
- Check travel direction, noise, bracket stability and stopping position.
- Ask Walter Motor for datasheet, wiring diagram and dimension drawing.
- Keep the installation method consistent with local electrical and safety requirements.
OEM / ODM
OEM / ODM Support
Walter Motor can support project configuration and batch supply after sample confirmation. OEM items should be confirmed before artwork, accessory kit or mass production.
| OEM item | What can be customized | What Walter needs to confirm |
|---|---|---|
| Voltage / frequency | 230V AC standard; 110V AC, 12V or market-specific voltage options where available. | Destination market, wiring diagram, frequency, plug standard and certification requirement. |
| Torque version | 10Nm, 15Nm, 20Nm, 30Nm, 40Nm or 50Nm within the 45mm platform. | Curtain weight, tube diameter, guide friction, travel height and safety factor. |
| Speed version | 12 rpm, 15 rpm or 17 rpm depending on motor version and torque. | Required travel speed, noise target, load and controller method. |
| Cable length | Project-specific cable length and cable exit direction. | Installation drawing, head-box layout and cable routing requirement. |
| Plug / connector | Localized plug, bare wire lead, connector or project cable end. | Country standard, controller type, site wiring and order quantity. |
| Motor label | Walter label, neutral label or OEM label with model and electrical data. | Brand artwork, required language, electrical rating and compliance markings. |
| Packaging | Walter carton, neutral carton, private label carton or project packing set. | Carton artwork, barcode, language, pallet requirement and shipping method. |
| Accessory kit | Bracket, crown adaptor, drive wheel, end cap, wall switch, receiver or transmitter set. | Tube drawing, bracket drawing, control method and installation sample. |
| Bracket matching | HTZ100, HTZ89 or project-specific star head bracket option. | 72# head interface, bracket drawing, mounting hole layout and load requirement. |
| Private label | Motor label, carton mark, instruction sheet and document naming can follow buyer brand rules. | Brand files, market language, MOQ, approval sample and packaging standard. |
| Datasheet | Model datasheet can be prepared for the confirmed voltage, torque and control method. | Exact model, application, voltage, limit type and required document language. |
| Drawing | Dimension drawing, head interface reference and accessory matching drawing where available. | Tube profile, bracket sample, insertion length and drawing format requirement. |
| Certification documents | Available CE / TUV / SAA / RoHS documents can be checked by exact model. | Destination market, model number, voltage version and compliance use case. |
| Sample order | Sample motor and matching accessory kit for installation test. | Sample quantity, tube/bracket sample, test application and target approval schedule. |
| Batch production | Batch supply with confirmed label, packing, cable, accessory and document configuration. | Forecast quantity, delivery schedule, QC requirement and approved sample status. |

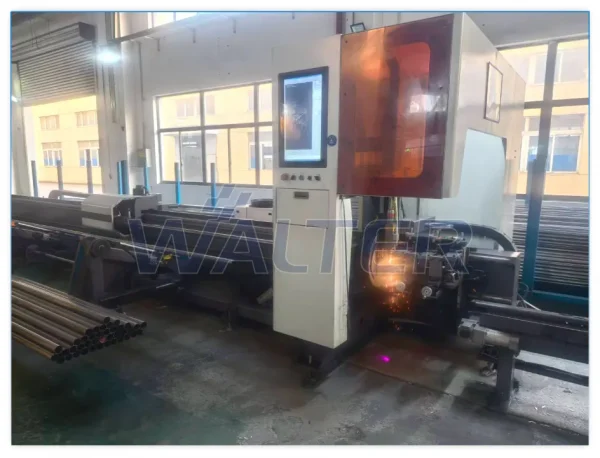

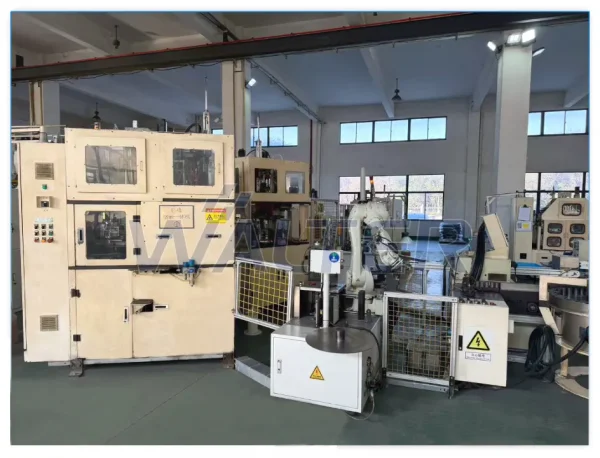

Manufacturing and QC
Walter Manufacturing Perspective
For OEM buyers, the 72# star head configuration should be treated as a complete mechanical and electrical system: motor body, head, bracket, tube adaptor, control method and document package.
QC checks
- Incoming material inspection.
- Stator inspection.
- Rotor inspection.
- Gearbox assembly check.
- Brake inspection.
- Hi-pot test.
- Insulation resistance test.
- Torque test.

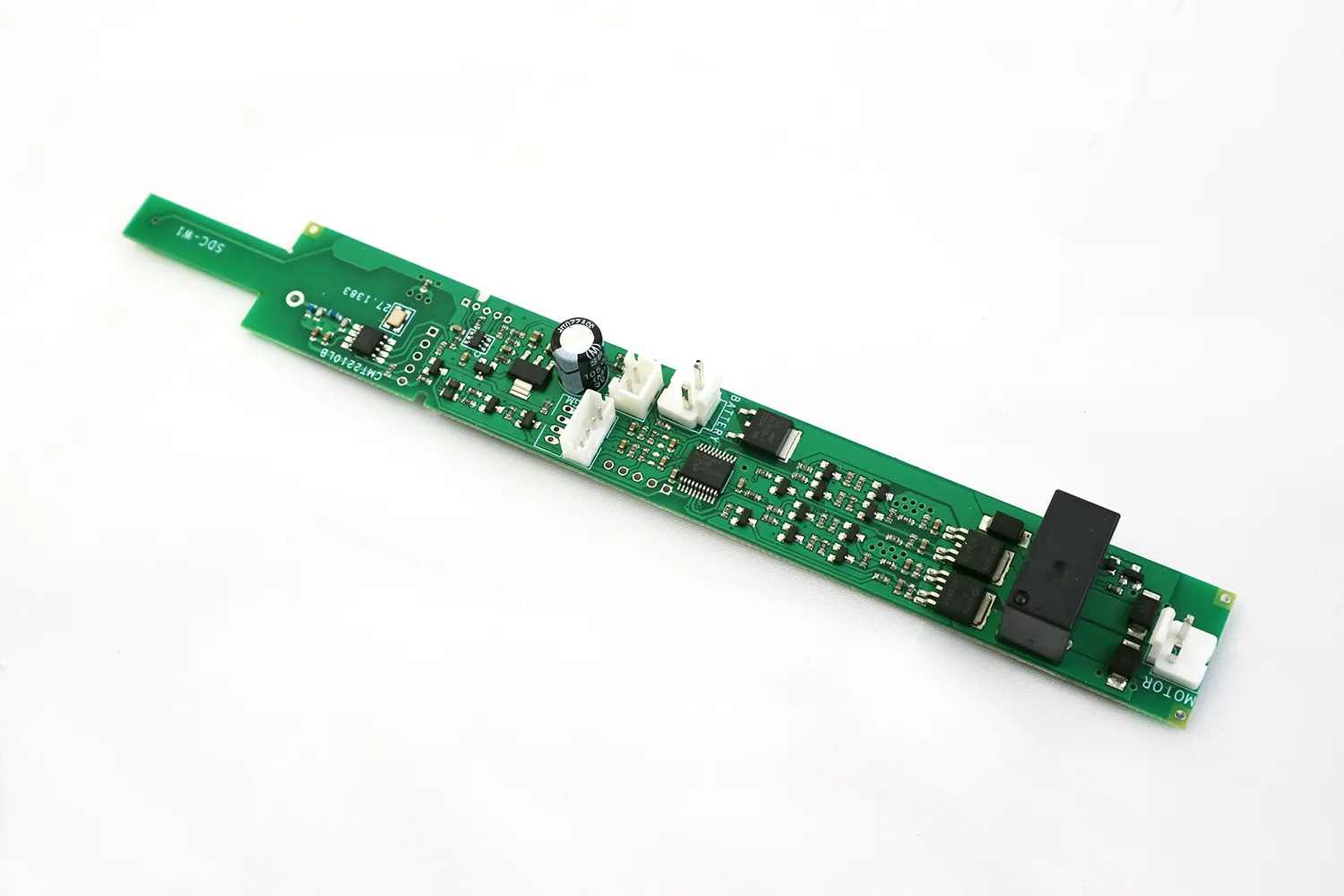

- Limit switch test.
- Noise inspection.
- Aging test.
- Final inspection before packing.
- Random sample inspection before shipment.
Related factory pages
Quality Control Production Process Walter Tubular Motor Factory Certificates
Certificates
Certificates and Compliance
CE, TUV, SAA and RoHS references should be confirmed by exact motor model, voltage version and destination market before bulk order. Do not use general certificate wording for a project without checking the exact model and market requirement.
RFQ checklist
Information Needed for Accurate Quotation
Send the following information when available. It helps Walter Motor confirm the correct torque, bracket, tube accessories, wiring and document coverage.
| Information | Why it matters |
|---|---|
| Application | Determines whether the motor is being selected for shutter, blind, awning, screen, rolling door or OEM assembly use. |
| Curtain / shutter size | Width and height help estimate travel distance, tube load and motor insertion space. |
| Curtain / shutter weight | Load data is needed for torque selection and safety margin. |
| Tube type and diameter | Tube profile and diameter decide the crown adaptor, drive wheel and motor fit. |
| Tube drawing | A drawing helps Walter confirm internal profile, wall thickness and drive adaptor match. |
| Bracket drawing | Bracket data confirms the 72# star head interface, mounting holes and load support. |
| Required torque or current motor model | Existing motor data helps match or improve the replacement specification. |
| Voltage and frequency | Electrical data determines motor version, cable, plug and certificate check. |
| Control method | Wall switch, external receiver or smart controller affects wiring and compatibility. |
| Cable length and plug | Needed for installation layout, localized plug choice and packing preparation. |
| Accessory requirement | Confirms whether bracket, crown, drive wheel, end cap, switch, receiver or transmitter should ship together. |
| Target quantity | Affects sample plan, OEM label feasibility, packaging work and production schedule. |
| Destination market | Controls voltage, plug, certificate and document language requirements. |
| Certification requirement | Walter can check CE / TUV / SAA / RoHS coverage by exact model and market. |
| Datasheet / drawing request | Defines which technical files should be prepared before sample or purchase approval. |
| Packaging / private label requirement | Confirms buyer brand, carton mark, barcode, manual and shipment presentation needs. |
FAQ
Star Head Motor FAQ
What is a 72# star head tubular motor?
A 72# star head tubular motor is a tubular motor with a star-shaped motor head interface used to match specific brackets, tubes and accessory sets in shutter, blind, awning and screen systems.
Is this motor based on the YYGL45S platform?
Yes. This Star Head Motor page is positioned as a 45mm YYGL45S-based tubular motor configuration with a 72# star head interface. Final voltage, torque and accessory set should be confirmed before order.
What applications is the Star Head Motor used for?
It is used for roller shutters, roller blinds, awnings, projection screens, light commercial rolling doors, smart shading systems and OEM sunshade assemblies after torque and accessory confirmation.
What torque options are available?
Common torque options are 10Nm, 15Nm, 20Nm, 30Nm, 40Nm and 50Nm. The final model should be selected from load, tube diameter, friction and duty cycle data.
How do I choose between 10Nm, 20Nm, 30Nm, 40Nm and 50Nm?
Do not choose torque only by curtain weight. Confirm tube diameter, lifting radius, side guide friction, awning arm load, fabric tension, travel height, operating frequency, voltage, controller type and safety factor.
Can this motor work with remote control?
Yes, it can work with a compatible external receiver or smart controller after wiring and motor version confirmation. If the project needs a built-in receiver inside the motor head, compare YYGL45R or YYGL45E instead.
Is it a built-in receiver motor?
No, this page focuses on the Star Head Motor configuration. Built-in receiver versions should be confirmed separately because the motor head, receiver space and wiring method may be different.
Which tubes and accessories should be confirmed before order?
Confirm the tube profile, tube diameter, crown adaptor, drive wheel, bracket, end cap, cable direction, wall switch, receiver and transmitter before sample approval or batch production.
Can Walter Motor provide brackets and drive adapters?
Walter Motor can help match brackets, crown adaptors, drive wheels and accessory kits after reviewing the tube drawing, bracket drawing or physical sample.
Can Walter Motor provide OEM label and packaging?
Yes. OEM label, carton mark, packaging, cable length, plug and accessory kit configuration can be discussed for sample order and batch production.
Can I request datasheet, wiring diagram and dimension drawing?
Yes. Send the target application, voltage, torque, control method and tube drawing so Walter Motor can provide the relevant datasheet, wiring diagram and dimension drawing.
Is this motor suitable for awnings?
It can be suitable for awning projects when arm load, fabric tension, tube, bracket, wind exposure and duty cycle are confirmed. Walter Motor should review project data before final selection.
What information should I send for a correct recommendation?
Send application, shutter or curtain size, weight, tube type and diameter, tube drawing, bracket drawing, required torque, voltage, control method, cable, plug, accessories, target quantity, market and certification requirement.
