YYGL35B | OEM / ODM / Distributor Supply
YYGL35B is the 35mm electronic limit platform for OEM projects where control wiring and end-position logic need confirmation. It should not be described as a built-in receiver version unless the exact variant verifies that function.
Product Images

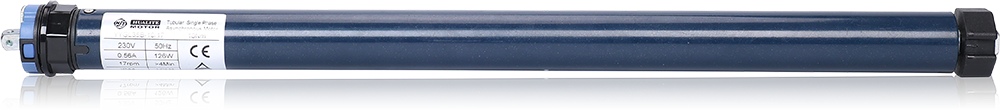

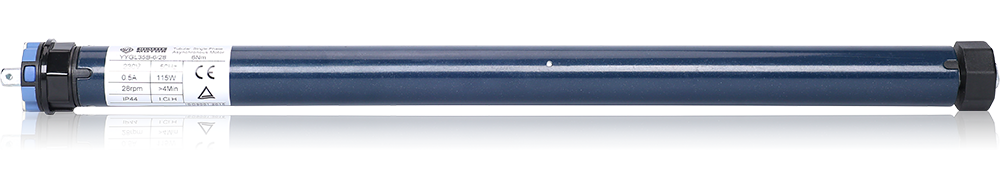

YYGL35B Product View and Application Context
Product photos are used for model recognition only. Final dimensions, tube cutting and bracket positions should be confirmed by drawing.
Quick Decision Table
Best For / Not Recommended For
Use this table for first-pass purchasing review before requesting drawings, accessory confirmation or sample approval.
Best For
- OEM roller blind projects needing electronic limit setting
- Supported external controller projects
- Compact systems requiring parallel-control logic after confirmation
- Projects where mechanical limit adjustment is not preferred
Not Recommended For
- Built-in RF receiver requirements unless selected variant confirms it
- Heavy shutters
- Unsupported parallel wiring
- Applications where controller wiring has not been reviewed
Model Positioning
Why Choose YYGL35B
35mm electronic limit / parallel control motor for projects needing electronic limit logic or supported external control wiring.
| Model | Positioning | When to Choose |
|---|---|---|
| YYGL35S | Standard mechanical limit | Simple wired AC control for compact blinds and light shutters. |
| YYGL35R | Mechanical limit with built-in receiver | RF remote control is needed without a separate receiver box. |
| YYGL35B | Electronic limit / parallel control option | Projects need electronic limit logic or supported external control wiring. |
| YYGL35E | Electronic limit with built-in receiver | RF remote control and electronic setting are required in compact systems. |
| YYGL35SD | Short body mechanical limit | Narrow installation width or compact bracket-to-bracket space. |
| WM35DS | DC / solar battery solution | Battery or solar control should be evaluated by exact configuration. |
Core Procurement Parameters
YYGL35B Purchasing Specification Summary
Use this section to check the model’s main procurement boundaries before preparing an RFQ.
| Parameter | Specification / Confirmation Note |
|---|---|
| Motor diameter | 35mm |
| Torque range | 3-13Nm |
| Rated voltage | 230V AC |
| Frequency | 50Hz |
| Limit system | Electronic limit / parallel control option |
| Control method | External controller / supported wiring |
| Protection rating | IP44 |
| Application | Compact shading systems needing electronic limit logic |
| OEM options | Voltage, cable length, plug, motor head, label, packaging and matched accessories by order requirement |
| Accessory matching requirement | Tube, crown adaptor, drive wheel and bracket must be checked by drawing or sample |
| Certification document availability | Available by exact model, voltage and destination market confirmation |
Engineering Parameters by Torque Version
YYGL35B Technical Data Table
The following values use the model data supplied for this upgrade. Garbled legacy values have been separated into protection, limit type and total length where applicable.
| Model | Torque | Rated speed | Voltage | Frequency | Rated power | Rated current | Running time | Protection | Limit type | Total length |
|---|---|---|---|---|---|---|---|---|---|---|
| YYGL35B-3/28 | 3Nm | 28rpm | 230V | 50Hz | 95W | 0.41A | 4 minutes | IP44 | Electronic limit | 555mm |
| YYGL35B-6/28 | 6Nm | 28rpm | 230V | 50Hz | 115W | 0.56A | 4 minutes | IP44 | Electronic limit | 555mm |
| YYGL35B-10/17 | 10Nm | 17rpm | 230V | 50Hz | 126W | 0.56A | 4 minutes | IP44 | Electronic limit | 555mm |
| YYGL35B-13/14 | 13Nm | 14rpm | 230V | 50Hz | 126W | 0.56A | 4 minutes | IP44 | Electronic limit | 555mm |
Mechanical Data
Tube, Head and Accessory Requirements
Confirm 35mm tube profile, crown adaptor, drive wheel, controller space and cable outlet before sample approval.
| Item | Engineering Note |
|---|---|
| Motor diameter | 35mm |
| Total length | See engineering table by torque version |
| Tube compatibility | Common small and medium roller tubes; confirm by tube drawing or sample. |
| Crown adaptor | Match crown profile to tube shape and inner diameter |
| Drive wheel | Confirm drive wheel profile, torque transfer and insertion depth |
| Bracket | Confirm motor head, fixing holes, load direction and site structure |
| Cable length | Standard or OEM length available on request |
| Motor head | Confirm head style, receiver/manual override clearance and bracket fit |
| Accessory notes | Confirm 35mm tube profile, crown adaptor, drive wheel, controller space and cable outlet before sample approval. |
Dimension and Installation Information
Request Drawing Before Final Installation Design
Dimension drawing available upon request. The old garbled value is corrected to IP44 protection, electronic limit and 555mm total length.
Do not finalize tube cutting, bracket position, minimum system width or installation clearance from product photos alone. Share the tube drawing, bracket structure and application size for confirmation.
Dimension drawing available upon request
Walter Motor can provide the model-specific dimension drawing for the selected torque version and accessory configuration.
Request DrawingTube, Crown, Drive Wheel and Bracket Matching
Compatibility Must Be Confirmed as a System
Motor selection is only one part of the system. Real performance depends on tube diameter, curtain weight, accessory fit, bracket alignment and installation quality.
| System Part | Compatibility Check |
|---|---|
| Tube diameter | Confirm small/medium roller tube profile and inner clearance. |
| Crown adaptor | Must match tube profile; do not assume one crown fits all tubes. |
| Drive wheel | Must match torque, tube profile and insertion depth. |
| Bracket | Check head style, fixing hole, load direction and installation alignment. |
| Controller / receiver | Confirm wiring, transmitter, gateway or controller compatibility when applicable. |
| Installation quality | Motor performance depends on tube diameter, curtain weight, accessory fit, bracket alignment and side-guide friction. |
Related resources: Accessories and tube and bracket compatibility guide.
Wiring / Control / Limit Setting Notes
Confirm Control Configuration Before Installation

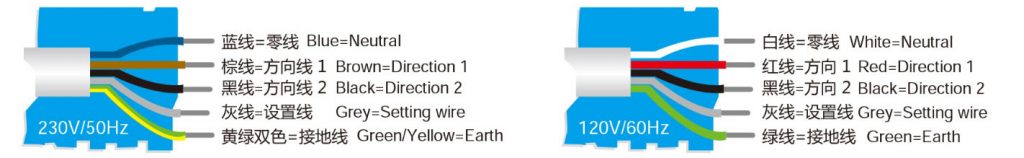

YYGL35B is an electronic limit / parallel control option. Confirm wiring diagram, controller type and whether the selected version supports parallel connection before installation.
Safety note: Do not connect multiple standard motors in parallel unless the selected model and control system support parallel wiring. Ask Walter Motor for the correct wiring diagram before bulk installation.
Compare limit and control choices in the limit systems guide.
Application Review
Where YYGL35B Fits
Application fit must be checked together with load, tube, control method, environment and duty cycle.
| Application | Fit | Engineering Check |
|---|---|---|
| Roller blinds | Yes | Confirm tube diameter, fabric weight and minimum width. |
| Roller shutters | Possible | Only light shutters after torque check. |
| Zip screens | Need confirmation | Check fabric tension, guide friction and controller requirement. |
| Awnings | Need confirmation | Confirm arm load, wind exposure and torque margin. |
| Garage doors / heavy shutters | Not standard | Requires project-specific safety devices and local compliance review. |
| Fire shutters | Not standard | Do not select without project-specific certification and safety validation. |
| Manual crank operation | Not standard | Choose manual override model if crank operation is required. |
| Electronic limit setting | Yes | Confirm controller or programming method. |
Torque Selection Guidance
Do Not Select Torque by Curtain Weight Alone
Torque selection should include curtain or fabric weight, tube diameter, lifting radius, side-guide friction, arm system or fabric tension, operating frequency, safety factor and installation environment.
Curtain or fabric weight
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Tube diameter and lifting radius
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Side guide friction
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Arm system or fabric tension
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Operating frequency
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Safety factor
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Installation environment
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Destination market requirement
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Related guide: torque calculation for tubular motors.
OEM / ODM Options
Configuration Options for Project Buyers
Walter Motor can discuss OEM options according to target quantity, destination market and certification requirement.
Customization reference: OEM / ODM customization.
Quality Control
Quality Control for YYGL35B Series
Walter Motor controls production through incoming material inspection, stator winding inspection, rotor and gearbox assembly control, hi-pot testing, insulation resistance testing, torque testing, limit switch testing, noise inspection, aging test and final inspection before packing.
See production process and quality control for factory-level context.
Certifications and Compliance
Certificate Coverage Must Match Exact Model and Market
Walter Motor can provide certification documents according to exact model, voltage and destination market. Commonly requested documents may include CE, LVD, EMC, RoHS and related reports. Certificate coverage must be confirmed by exact model and market.
Technical Document Request
Request Technical Documents
If PDF files are not published, these requests go to Walter Motor technical support instead of pretending to be direct downloads.
FAQ
YYGL35B Buyer Questions
What is YYGL35B best used for?
YYGL35B 35mm Electronic Limit Motor is best used for compact shading systems needing electronic limit logic after torque, tube and accessory matching are confirmed.
How is YYGL35B different from YYGL35S?
YYGL35B is positioned as a 35mm electronic limit platform. Compare nearby models when receiver, electronic limit, short body or manual override functions are required.
What control method does YYGL35B use?
External controller / supported wiring. Where smart integration is required, confirm the compatible gateway or controller before ordering.
Which tube is compatible with YYGL35B?
Common compact roller tubes may be used, but the tube drawing or sample must be checked with the crown adaptor and drive wheel.
How should torque be selected for YYGL35B?
Do not select torque by curtain weight alone. Confirm curtain size, weight, tube diameter, lifting radius, guide friction, duty cycle and safety factor.
Does YYGL35B include manual override?
No. YYGL35B 35mm Electronic Limit Motor is not the manual override model; choose a manual override model when crank operation is required.
Does YYGL35B include electronic limit or built-in receiver?
Yes. Electronic limit is a core feature, but the setting method depends on the selected controller or programming method. No built-in receiver should be assumed. Use wall switch, external receiver or choose a receiver model if that function is required.
Can Walter Motor provide certificates and OEM options for YYGL35B?
Walter Motor can provide certificate coverage checks and OEM options according to exact model, voltage, control configuration, quantity and destination market.
