YYGL59E | OEM / ODM / Distributor Supply
YYGL59E keeps electronic limit as the core feature for heavy applications. Additional functions such as rebound, dot-move or special parallel-control logic depend on selected version and controller. Confirm before ordering.
Product Images

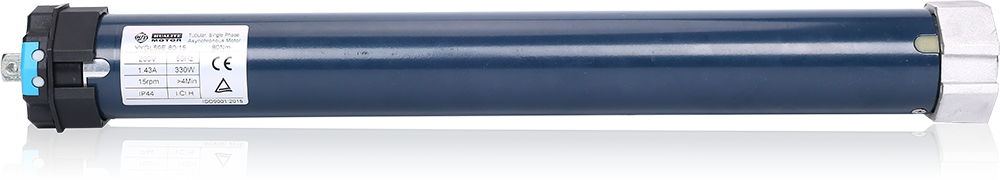

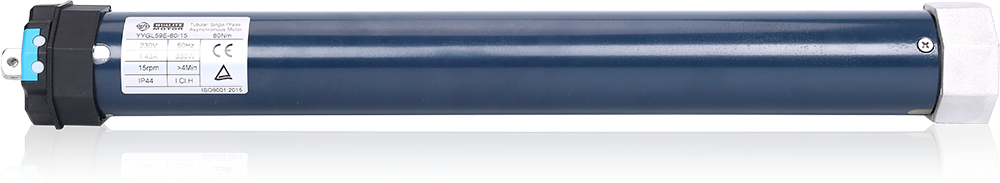

YYGL59E Product View and Application Context
Product photos are used for model recognition only. Final dimensions, tube cutting and bracket positions should be confirmed by drawing.
Quick Decision Table
Best For / Not Recommended For
Use this table for first-pass purchasing review before requesting drawings, accessory confirmation or sample approval.
Best For
- Heavy shutters requiring electronic limit setting
- Large shading systems
- Commercial applications with controller review
- OEM projects needing electronic end-position logic
Not Recommended For
- Standard manual override requirement
- Unsupported rebound or obstacle detection claims
- Projects without controller confirmation
- Light blind applications
Model Positioning
Why Choose YYGL59E
59mm electronic limit AC tubular motor for heavy shutters and large shading systems requiring electronic limit setting.
| Model | Positioning | When to Choose |
|---|---|---|
| YYGL59S | Standard mechanical limit | Heavy shutters and large systems with wired control or external receiver. |
| YYGL59R | Mechanical limit with built-in receiver | Heavy systems needing RF receiver control. |
| YYGL59M | Manual override | Crank operation is required for heavy systems. |
| YYGL59MR | Manual override plus receiver | RF control and crank operation are both required. |
| YYGL59E | Electronic limit | Heavy systems needing electronic end-position setting. |
Core Procurement Parameters
YYGL59E Purchasing Specification Summary
Use this section to check the model’s main procurement boundaries before preparing an RFQ.
| Parameter | Specification / Confirmation Note |
|---|---|
| Motor diameter | 59mm |
| Torque range | 60-140Nm |
| Rated voltage | 230V AC |
| Frequency | 50Hz |
| Limit system | Electronic limit |
| Control method | Electronic setting / controller by selected version |
| Protection rating | IP44 |
| Application | Heavy shutters and large shading systems requiring electronic limits |
| OEM options | Voltage, cable length, plug, motor head, label, packaging and matched accessories by order requirement |
| Accessory matching requirement | Tube, crown adaptor, drive wheel and bracket must be checked by drawing or sample |
| Certification document availability | Available by exact model, voltage and destination market confirmation |
Engineering Parameters by Torque Version
YYGL59E Technical Data Table
The following values use the model data supplied for this upgrade. Garbled legacy values have been separated into protection, limit type and total length where applicable.
| Model | Torque | Rated speed | Voltage | Frequency | Rated power | Rated current | Running time | Protection | Limit type | Total length |
|---|---|---|---|---|---|---|---|---|---|---|
| YYGL59E-60/15 | 60Nm | 15rpm | 230V | 50Hz | 310W | 1.35A | 4 minutes | IP44 | Electronic limit | 700mm |
| YYGL59E-80/15 | 80Nm | 15rpm | 230V | 50Hz | 330W | 1.43A | 4 minutes | IP44 | Electronic limit | 700mm |
| YYGL59E-100/12 | 100Nm | 12rpm | 230V | 50Hz | 350W | 1.52A | 4 minutes | IP44 | Electronic limit | 700mm |
| YYGL59E-120/9 | 120Nm | 9rpm | 230V | 50Hz | 360W | 1.56A | 4 minutes | IP44 | Electronic limit | 700mm |
| YYGL59E-140/9 | 140Nm | 9rpm | 230V | 50Hz | 430W | 1.86A | 4 minutes | IP44 | Electronic limit | 700mm |
Mechanical Data
Tube, Head and Accessory Requirements
Heavy-duty tube, crown, drive wheel and bracket matching must be confirmed by 70mm+ tube drawing or sample. Controller space and wiring access should be checked early.
| Item | Engineering Note |
|---|---|
| Motor diameter | 59mm |
| Total length | See engineering table by torque version |
| Tube compatibility | Heavy-duty 70mm+ tube systems; confirm tube profile and accessory strength. |
| Crown adaptor | Match crown profile to tube shape and inner diameter |
| Drive wheel | Confirm drive wheel profile, torque transfer and insertion depth |
| Bracket | Confirm motor head, fixing holes, load direction and site structure |
| Cable length | Standard or OEM length available on request |
| Motor head | Confirm head style, receiver/manual override clearance and bracket fit |
| Accessory notes | Heavy-duty tube, crown, drive wheel and bracket matching must be confirmed by 70mm+ tube drawing or sample. Controller space and wiring access should be checked early. |

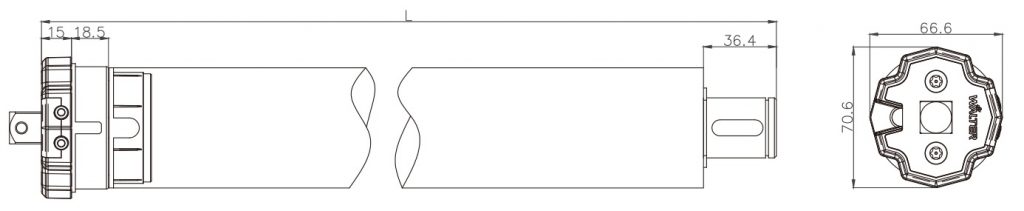

Dimension and Installation Information
Request Drawing Before Final Installation Design
Confirm total length, head clearance, bracket load direction and controller wiring before tube cutting or project approval.
Do not finalize tube cutting, bracket position, minimum system width or installation clearance from product photos alone. Share the tube drawing, bracket structure and application size for confirmation.
Tube, Crown, Drive Wheel and Bracket Matching
Compatibility Must Be Confirmed as a System
Motor selection is only one part of the system. Real performance depends on tube diameter, curtain weight, accessory fit, bracket alignment and installation quality.
| System Part | Compatibility Check |
|---|---|
| Tube diameter | Confirm heavy-duty 70mm+ tube profile and wall thickness. |
| Crown adaptor | Must match tube profile; do not assume one crown fits all tubes. |
| Drive wheel | Must match torque, tube profile and insertion depth. |
| Bracket | Check head style, fixing hole, load direction and installation alignment. |
| Controller / receiver | Confirm wiring, transmitter, gateway or controller compatibility when applicable. |
| Installation quality | Motor performance depends on tube diameter, curtain weight, accessory fit, bracket alignment and side-guide friction. |
Related resources: Accessories and tube and bracket compatibility guide.
Wiring / Control / Limit Setting Notes
Confirm Control Configuration Before Installation
YYGL59E uses electronic limit setting. Additional functions such as rebound, dot-move or special parallel-control logic depend on selected version and controller.
Safety note: Do not connect multiple standard motors in parallel unless the selected model and control system support parallel wiring. Ask Walter Motor for the correct wiring diagram before bulk installation.
Compare limit and control choices in the limit systems guide.
Application Review
Where YYGL59E Fits
Application fit must be checked together with load, tube, control method, environment and duty cycle.
| Application | Fit | Engineering Check |
|---|---|---|
| Roller blinds | Need confirmation | Usually over-specified; confirm tube and load. |
| Roller shutters | Yes | Confirm shutter weight, side guide friction and duty cycle. |
| Zip screens | Possible | Check fabric tension, guide friction and controller requirement. |
| Awnings | Possible | Confirm arm load, wind exposure and torque margin. |
| Garage doors / heavy shutters | Need confirmation | Requires project-specific safety devices and local compliance review. |
| Fire shutters | Not standard | Do not select without project-specific certification and safety validation. |
| Manual crank operation | Not standard | Choose manual override model if crank operation is required. |
| Electronic limit setting | Yes | Confirm controller or programming method. |
Torque Selection Guidance
Do Not Select Torque by Curtain Weight Alone
Torque selection should include curtain or fabric weight, tube diameter, lifting radius, side-guide friction, arm system or fabric tension, operating frequency, safety factor and installation environment.
Curtain or fabric weight
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Tube diameter and lifting radius
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Side guide friction
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Arm system or fabric tension
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Operating frequency
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Safety factor
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Installation environment
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Destination market requirement
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Related guide: torque calculation for tubular motors.
OEM / ODM Options
Configuration Options for Project Buyers
Walter Motor can discuss OEM options according to target quantity, destination market and certification requirement.
Customization reference: OEM / ODM customization.
Quality Control
Quality Control for YYGL59E Series
Walter Motor controls production through incoming material inspection, stator winding inspection, rotor and gearbox assembly control, hi-pot testing, insulation resistance testing, torque testing, limit switch testing, noise inspection, aging test and final inspection before packing.
See production process and quality control for factory-level context.
Certifications and Compliance
Certificate Coverage Must Match Exact Model and Market
Walter Motor can provide certification documents according to exact model, voltage and destination market. Commonly requested documents may include CE, LVD, EMC, RoHS and related reports. Certificate coverage must be confirmed by exact model and market.
Technical Document Request
Request Technical Documents
If PDF files are not published, these requests go to Walter Motor technical support instead of pretending to be direct downloads.
FAQ
YYGL59E Buyer Questions
What is YYGL59E best used for?
YYGL59E 59mm Electronic Limit Motor is best used for heavy shutters and large shading systems requiring electronic limits after torque, tube and accessory matching are confirmed.
How is YYGL59E different from YYGL59S?
YYGL59E is positioned as a 59mm heavy-duty electronic limit motor. Compare nearby models when receiver, electronic limit, short body or manual override functions are required.
What control method does YYGL59E use?
Electronic setting / controller by selected version. Where smart integration is required, confirm the compatible gateway or controller before ordering.
Which tube is compatible with YYGL59E?
Heavy-duty tube systems should be confirmed by 70mm+ tube drawing or sample, including accessory strength and bracket alignment.
How should torque be selected for YYGL59E?
Do not select torque by curtain weight alone. Confirm curtain size, weight, tube diameter, lifting radius, guide friction, duty cycle and safety factor.
Does YYGL59E include manual override?
No. YYGL59E 59mm Electronic Limit Motor is not the manual override model; choose a manual override model when crank operation is required.
Does YYGL59E include electronic limit or built-in receiver?
Yes. Electronic limit is a core feature, but the setting method depends on the selected controller or programming method. No built-in receiver should be assumed. Use wall switch, external receiver or choose a receiver model if that function is required.
Can Walter Motor provide certificates and OEM options for YYGL59E?
Walter Motor can provide certificate coverage checks and OEM options according to exact model, voltage, control configuration, quantity and destination market.
RFQ Checklist
Information to Send Before Quotation
Complete information helps Walter Motor check torque, tube compatibility, control method and OEM configuration before sample or batch order.
Technical Support
Need help confirming YYGL59E compatibility?
Send your tube drawing, curtain size, application and target quantity. Walter Motor can help check torque, tube compatibility, control method and OEM configuration before sample or batch order.
