YYGL35S | OEM / ODM / Distributor Supply
YYGL35S is the basic 35mm AC mechanical limit model for OEM roller blind and light shutter projects. It is not a built-in receiver motor and should be controlled by wall switch or a matched external receiver.
Product Images

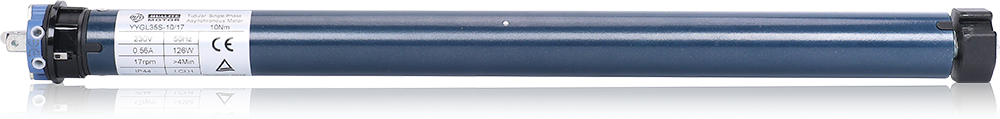

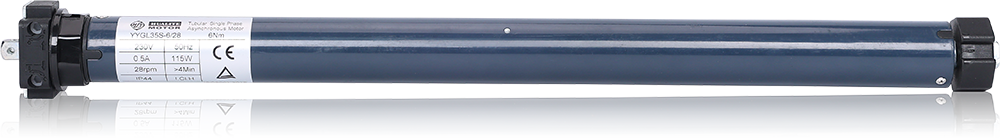

YYGL35S Product View and Application Context
Product photos are used for model recognition only. Final dimensions, tube cutting and bracket positions should be confirmed by drawing.
Quick Decision Table
Best For / Not Recommended For
Use this table for first-pass purchasing review before requesting drawings, accessory confirmation or sample approval.
Best For
- Standard roller blinds
- Light roller shutters
- Small residential shading systems
- OEM batch projects needing simple wired AC control
Not Recommended For
- Heavy commercial shutters
- Applications needing built-in RF receiver
- Direct app or voice control without external controller
- Projects without torque confirmation
Model Positioning
Why Choose YYGL35S
35mm standard mechanical limit AC tubular motor for compact systems needing simple wired control.
| Model | Positioning | When to Choose |
|---|---|---|
| YYGL35S | Standard mechanical limit | Simple wired AC control for compact blinds and light shutters. |
| YYGL35R | Mechanical limit with built-in receiver | RF remote control is needed without a separate receiver box. |
| YYGL35B | Electronic limit / parallel control option | Projects need electronic limit logic or supported external control wiring. |
| YYGL35E | Electronic limit with built-in receiver | RF remote control and electronic setting are required in compact systems. |
| YYGL35SD | Short body mechanical limit | Narrow installation width or compact bracket-to-bracket space. |
| WM35DS | DC / solar battery solution | Battery or solar control should be evaluated by exact configuration. |
Core Procurement Parameters
YYGL35S Purchasing Specification Summary
Use this section to check the model’s main procurement boundaries before preparing an RFQ.
| Parameter | Specification / Confirmation Note |
|---|---|
| Motor diameter | 35mm |
| Torque range | 3-13Nm |
| Rated voltage | 230V AC |
| Frequency | 50Hz |
| Limit system | Mechanical limit switch |
| Control method | Wall switch / external receiver |
| Protection rating | IP44 |
| Application | Roller blinds, light roller shutters and small shading systems |
| OEM options | Voltage, cable length, plug, motor head, label, packaging and matched accessories by order requirement |
| Accessory matching requirement | Tube, crown adaptor, drive wheel and bracket must be checked by drawing or sample |
| Certification document availability | Available by exact model, voltage and destination market confirmation |
Engineering Parameters by Torque Version
YYGL35S Technical Data Table
The following values use the model data supplied for this upgrade. Garbled legacy values have been separated into protection, limit type and total length where applicable.
| Model | Torque | Rated speed | Voltage | Frequency | Rated power | Rated current | Running time | Protection | Limit turns | Total length |
|---|---|---|---|---|---|---|---|---|---|---|
| YYGL35S-3/28 | 3Nm | 28rpm | 230V | 50Hz | 95W | 0.41A | 4 minutes | IP44 | 39 | 510mm |
| YYGL35S-6/28 | 6Nm | 28rpm | 230V | 50Hz | 115W | 0.56A | 4 minutes | IP44 | 39 | 510mm |
| YYGL35S-10/17 | 10Nm | 17rpm | 230V | 50Hz | 126W | 0.56A | 4 minutes | IP44 | 39 | 510mm |
| YYGL35S-13/14 | 13Nm | 14rpm | 230V | 50Hz | 126W | 0.56A | 4 minutes | IP44 | 39 | 510mm |
Mechanical Data
Tube, Head and Accessory Requirements
Common small and medium roller tubes can be matched by crown adaptor and drive wheel. Confirm tube drawing, inner profile and bracket space before cutting tube length.
| Item | Engineering Note |
|---|---|
| Motor diameter | 35mm |
| Total length | See engineering table by torque version |
| Tube compatibility | Common small and medium roller tubes; confirm by tube drawing or sample. |
| Crown adaptor | Match crown profile to tube shape and inner diameter |
| Drive wheel | Confirm drive wheel profile, torque transfer and insertion depth |
| Bracket | Confirm motor head, fixing holes, load direction and site structure |
| Cable length | Standard or OEM length available on request |
| Motor head | Confirm head style, receiver/manual override clearance and bracket fit |
| Accessory notes | Common small and medium roller tubes can be matched by crown adaptor and drive wheel. Confirm tube drawing, inner profile and bracket space before cutting tube length. |
Dimension and Installation Information
Request Drawing Before Final Installation Design

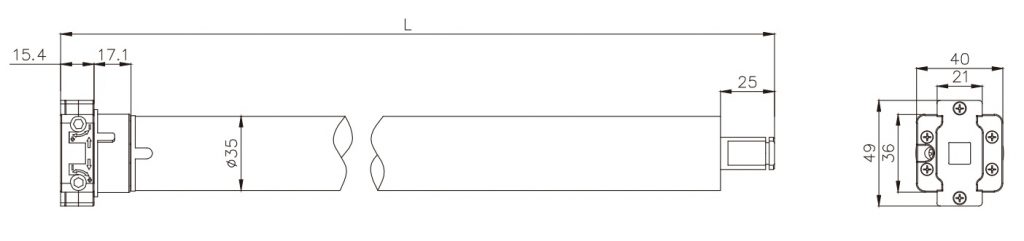

Dimension drawing available upon request. Do not finalize tube cutting, bracket position or minimum system width from product photos alone.
Do not finalize tube cutting, bracket position, minimum system width or installation clearance from product photos alone. Share the tube drawing, bracket structure and application size for confirmation.
Dimension drawing available upon request
Walter Motor can provide the model-specific dimension drawing for the selected torque version and accessory configuration.
Request DrawingTube, Crown, Drive Wheel and Bracket Matching
Compatibility Must Be Confirmed as a System
Motor selection is only one part of the system. Real performance depends on tube diameter, curtain weight, accessory fit, bracket alignment and installation quality.
| System Part | Compatibility Check |
|---|---|
| Tube diameter | Confirm small/medium roller tube profile and inner clearance. |
| Crown adaptor | Must match tube profile; do not assume one crown fits all tubes. |
| Drive wheel | Must match torque, tube profile and insertion depth. |
| Bracket | Check head style, fixing hole, load direction and installation alignment. |
| Controller / receiver | Confirm wiring, transmitter, gateway or controller compatibility when applicable. |
| Installation quality | Motor performance depends on tube diameter, curtain weight, accessory fit, bracket alignment and side-guide friction. |
Related resources: Accessories and tube and bracket compatibility guide.
Wiring / Control / Limit Setting Notes
Confirm Control Configuration Before Installation
YYGL35S is a wired AC mechanical limit motor. Use a wall switch or a compatible external receiver. Do not connect multiple standard motors in parallel unless the selected controller and wiring design support it.
Safety note: Do not connect multiple standard motors in parallel unless the selected model and control system support parallel wiring. Ask Walter Motor for the correct wiring diagram before bulk installation.
Compare limit and control choices in the limit systems guide.
Application Review
Where YYGL35S Fits
Application fit must be checked together with load, tube, control method, environment and duty cycle.
| Application | Fit | Engineering Check |
|---|---|---|
| Roller blinds | Yes | Confirm tube diameter, fabric weight and minimum width. |
| Roller shutters | Possible | Only light shutters after torque check. |
| Zip screens | Need confirmation | Check fabric tension, guide friction and controller requirement. |
| Awnings | Need confirmation | Confirm arm load, wind exposure and torque margin. |
| Garage doors / heavy shutters | Not standard | Requires project-specific safety devices and local compliance review. |
| Fire shutters | Not standard | Do not select without project-specific certification and safety validation. |
| Manual crank operation | Not standard | Choose manual override model if crank operation is required. |
| Electronic limit setting | Not standard | Choose electronic limit model if electronic setting is required. |
Torque Selection Guidance
Do Not Select Torque by Curtain Weight Alone
Torque selection should include curtain or fabric weight, tube diameter, lifting radius, side-guide friction, arm system or fabric tension, operating frequency, safety factor and installation environment.
Curtain or fabric weight
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Tube diameter and lifting radius
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Side guide friction
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Arm system or fabric tension
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Operating frequency
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Safety factor
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Installation environment
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Destination market requirement
Include this information in the RFQ so Walter Motor can check the model before sample or batch order.
Related guide: torque calculation for tubular motors.
OEM / ODM Options
Configuration Options for Project Buyers
Walter Motor can discuss OEM options according to target quantity, destination market and certification requirement.
Customization reference: OEM / ODM customization.
Quality Control
Quality Control for YYGL35S Series
Walter Motor controls production through incoming material inspection, stator winding inspection, rotor and gearbox assembly control, hi-pot testing, insulation resistance testing, torque testing, limit switch testing, noise inspection, aging test and final inspection before packing.
See production process and quality control for factory-level context.
Certifications and Compliance
Certificate Coverage Must Match Exact Model and Market
Walter Motor can provide certification documents according to exact model, voltage and destination market. Commonly requested documents may include CE, LVD, EMC, RoHS and related reports. Certificate coverage must be confirmed by exact model and market.
Technical Document Request
Request Technical Documents
If PDF files are not published, these requests go to Walter Motor technical support instead of pretending to be direct downloads.
FAQ
YYGL35S Buyer Questions
What is YYGL35S best used for?
YYGL35S 35mm Mechanical Limit Motor is best used for roller blinds, light roller shutters and small shading systems after torque, tube and accessory matching are confirmed.
How is YYGL35S different from YYGL35R?
YYGL35S is positioned as a standard wired 35mm mechanical limit motor. Compare nearby models when receiver, electronic limit, short body or manual override functions are required.
What control method does YYGL35S use?
Wall switch / external receiver. Where smart integration is required, confirm the compatible gateway or controller before ordering.
Which tube is compatible with YYGL35S?
Common compact roller tubes may be used, but the tube drawing or sample must be checked with the crown adaptor and drive wheel.
How should torque be selected for YYGL35S?
Do not select torque by curtain weight alone. Confirm curtain size, weight, tube diameter, lifting radius, guide friction, duty cycle and safety factor.
Does YYGL35S include manual override?
No. YYGL35S 35mm Mechanical Limit Motor is not the manual override model; choose a manual override model when crank operation is required.
Does YYGL35S include electronic limit or built-in receiver?
No. It uses mechanical limit setting unless a different selected variant is confirmed. No built-in receiver should be assumed. Use wall switch, external receiver or choose a receiver model if that function is required.
Can Walter Motor provide certificates and OEM options for YYGL35S?
Walter Motor can provide certificate coverage checks and OEM options according to exact model, voltage, control configuration, quantity and destination market.
RFQ Checklist
Information to Send Before Quotation
Complete information helps Walter Motor check torque, tube compatibility, control method and OEM configuration before sample or batch order.
Technical Support
Need help confirming YYGL35S compatibility?
Send your tube drawing, curtain size, application and target quantity. Walter Motor can help check torque, tube compatibility, control method and OEM configuration before sample or batch order.
