12V DC solar battery motor with built-in 2600mAh rechargeable battery, 10Nm torque, 14rpm speed, and solar panel charging support for roller shutters and roller blinds.
The WM35DS-10/14 is designed for window covering projects where AC wiring is difficult or not preferred. It combines a compact 35mm motor structure, built-in rechargeable battery, and solar panel charging support for retrofit roller shutter and roller blind systems.

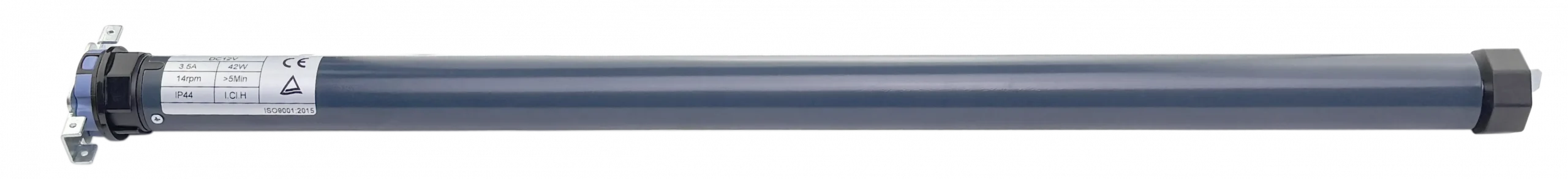

Clean side-view product image for WM35DS-10/14 solar battery motor.
Built-in Battery Motor for Solar Shading Systems
The WM35DS-10/14 Solar Battery Motor is a 12V DC drive solution for roller shutters, roller blinds, and similar sun-shading systems. With a built-in 2600mAh rechargeable battery and solar panel charging compatibility, it helps reduce wiring work and supports flexible installation in retrofit and facade projects.
Its 10Nm torque and 14rpm speed provide a practical balance between lifting force, movement speed, and daily operation for small and medium shading systems. The motor can be charged by a compatible solar panel or by an optional 12.6V DC 1.5A charger when additional charging is required.
Why Choose WM35DS-10/14?
Built-in Rechargeable Battery
2600mAh battery integrated inside the motor body, reducing the need for an external battery box and simplifying system design.
Solar Charging Compatible
Can be paired with a compatible solar panel to support battery charging for roller shutter and roller blind applications.
12V DC Low-Voltage Design
Suitable for low-voltage shading systems and solar-powered window covering projects.
10Nm Output Torque
Designed for small and medium roller shutters, roller blinds, and sun-shading systems requiring a compact 35mm motor class.
Reduced Wiring Work
A practical solution for retrofit installations where AC wiring is difficult, expensive, or not preferred.
OEM Supply from Walter Motor
Manufactured by Zhejiang Walter Mech Electrical Co., Ltd., supporting OEM projects, private label supply, and batch production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | WM35DS-10/14 |
| Product Name | Solar Battery Motor |
| Motor Type | DC battery motor |
| Technical Type | 35mm tubular motor |
| Rated Torque | 10Nm |
| Rated Speed | 14rpm |
| Rated Voltage | 12V DC |
| Rated Current | 3.5A |
| Rated Power | 42W |
| Battery Type | Built-in rechargeable battery |
| Battery Capacity | 2600mAh |
| Charging Method | Solar panel charging compatible |
| Optional Charger | 12.6V DC, 1.5A |
| IP Rating | IP44 |
| Control | Wireless remote control compatible |
| Application | Roller shutters, roller blinds, solar shading systems |
| Packaging | Individual box and master carton |
Technical data may be adjusted according to project requirements. Please contact Walter Motor for confirmed specifications before bulk orders.
Solar Charging for Easier Retrofit Installation
For projects where AC power wiring is difficult, the WM35DS-10/14 can be connected with a compatible solar panel to charge the built-in battery. This helps reduce installation work and makes the motor suitable for retrofit roller shutter, roller blind, and solar shading projects.
Panel Position
Install the solar panel in a position with good sunlight exposure.
Clean Surface
Keep the solar panel clean for stable charging performance.
Avoid Long Shading
Avoid long-term shading from walls, eaves, trees, leaves, or snow.
Use Optional Charger
Use the optional charger when additional charging is required before installation or during long periods of low sunlight.
Solar charging performance depends on sunlight condition, panel position, installation environment, and daily motor usage.
Recommended Applications
Solar Roller Shutters
For residential or light commercial roller shutter systems where wiring work should be reduced.
Battery Powered Roller Blinds
For indoor or facade blind projects requiring a compact DC motor with built-in battery.
Retrofit Window Covering Systems
For renovation projects where adding AC power cables is inconvenient or costly.
Low-Voltage Shading Projects
For solar shading systems requiring 12V DC motor integration.
The WM35DS-10/14 is suitable for projects that require compact size, reduced wiring work, and solar charging support. Final selection should always consider curtain weight, tube size, friction, guide condition, and expected daily operating cycles.
Designed for Practical Roller Shutter and Blind Installation
Installation Notes
- Confirm shutter or blind weight before motor selection.
- Make sure the guide rails and moving parts operate smoothly.
- Avoid drilling into the motor body.
- Protect the motor from impact, crushing, or liquid contact.
- Ensure the solar panel cable and motor cable do not contact moving parts.
- Charge the battery before installation if the motor has been stored for a long time.
Packaging Information
| Package | Size | Quantity |
|---|---|---|
| Individual Box | 700 × 75 × 75 mm | 1 pc per individual box |
| Master Carton | 720 × 410 × 170 mm | 10 pcs per carton |
Standard export packaging is available for OEM and batch orders. Product label, private label, user manual, and carton marking can be discussed according to customer requirements.
Quality, Documentation and OEM Support
WM35DS-10/14 is supplied by Zhejiang Walter Mech Electrical Co., Ltd. The model has RoHS test documentation available for international customers. Walter Motor supports B2B buyers with technical communication, product documentation, OEM cooperation, and batch production.
RoHS Test Report Available
Documentation can be provided for international B2B customers when required.
EU Conformity Documents
CE marking / EU conformity documents are available upon request for the confirmed model.
OEM and Private Label Support
Product label, manual, packaging and carton marking can be discussed by project.
Batch Production Support
Walter Motor supports technical communication and production planning for batch orders.
When Should You Choose a Solar Battery Motor?
Choose WM35DS-10/14 when:
- AC wiring is difficult or not preferred.
- The project requires a compact 35mm motor class.
- The roller shutter or blind needs battery-powered operation.
- Solar panel charging is preferred for daily battery support.
- The project is for retrofit window covering installation.
Consider a wired AC motor when:
- Continuous power supply is already available.
- The shutter is large or heavy.
- The application requires higher torque.
- The project has high daily operating frequency.
Compare this model with the 35mm and 45mm tubular motor range, roller shutter motor solutions, roller blind motor options, and compatible solar panel accessories when building a complete solar shading system.
Technical Documents Download
For B2B project review, Walter Motor can provide technical documents for the WM35DS-10/14 Solar Battery Motor. Certificate coverage should be confirmed by exact model, configuration, and destination market before bulk orders.
WM35DS CE / RoHS Technical Document
Download the renamed PDF document for customer evaluation, project files, and preliminary compliance review.
Download PDFNeed More Documents?
For datasheets, wiring guidance, charging accessories, OEM labels, or market-specific documentation, contact Walter Motor with your project requirement and destination market.
Contact Walter MotorFAQ
What is the main advantage of WM35DS-10/14?
It combines a 12V DC motor, built-in rechargeable battery, and solar panel charging compatibility, making it suitable for roller shutter and roller blind projects where wiring work should be reduced.
Can the WM35DS-10/14 be charged by solar panel?
Yes. It can be connected with a compatible solar panel to charge the built-in battery. Charging performance depends on sunlight condition, panel position, and daily usage.
Can it also be charged by charger?
Yes. An optional 12.6V DC 1.5A charger can be used when additional charging is required.
What is the torque and speed of this model?
The WM35DS-10/14 provides 10Nm torque and 14rpm speed.
What applications is this motor suitable for?
It is suitable for roller shutters, roller blinds, solar shading systems, and retrofit window covering projects. Final selection should be confirmed based on shutter weight, tube diameter, friction, and installation conditions.
Is this a tubular motor?
Yes. Technically, WM35DS-10/14 is a compact 35mm tubular motor structure. For marketing and customer understanding, this page uses the name solar battery motor.
What is the battery capacity?
The motor has a built-in 2600mAh rechargeable battery.
What is the packaging?
The individual box size is 700 x 75 x 75 mm. The master carton size is 720 x 410 x 170 mm, with 10 pieces per carton.
Can Walter Motor support OEM orders?
Yes. Walter Motor supports OEM cooperation, private label supply, batch production, and technical communication for B2B customers.
Looking for a Solar Battery Motor for Your Roller Shutter or Blind Project?
Send your shutter size, tube diameter, curtain weight, control requirement, and target market. Walter Motor can help confirm whether WM35DS-10/14 is suitable for your project.
For custom packaging, documentation, or model confirmation, contact Walter Motor for project support.
